DJ-6 Work Begin
I finally had time to start to work on my project…after 5 years!
I took us 4 hours to get the heart of the beast out of it!
First we removed any cable/wire/link attached to the engine.
Second step was the removal of the front grill with the radiator and radiator rod support.
Then we unscrewed the bell housing and get the engine out…
It look scary like this…we just need to add some car’s movie like eyes to get an Halloween ornament!
Universal Jeep on Farm
Here is a fold out about the all-purpose Universal Jeep on farm.
It is not dated but it must be earlier than 1949 since only CJ-2A or MB are illustrated.
I really like the “9 reasons why the “Jeep” can do it all!” at the end.
Concept Jeep II 1977
What do you think about this Concept Jeep II in 1977?
I think it look like to an MB more than a CJ-5. It’s a flat fenders with 9 slots front grill…

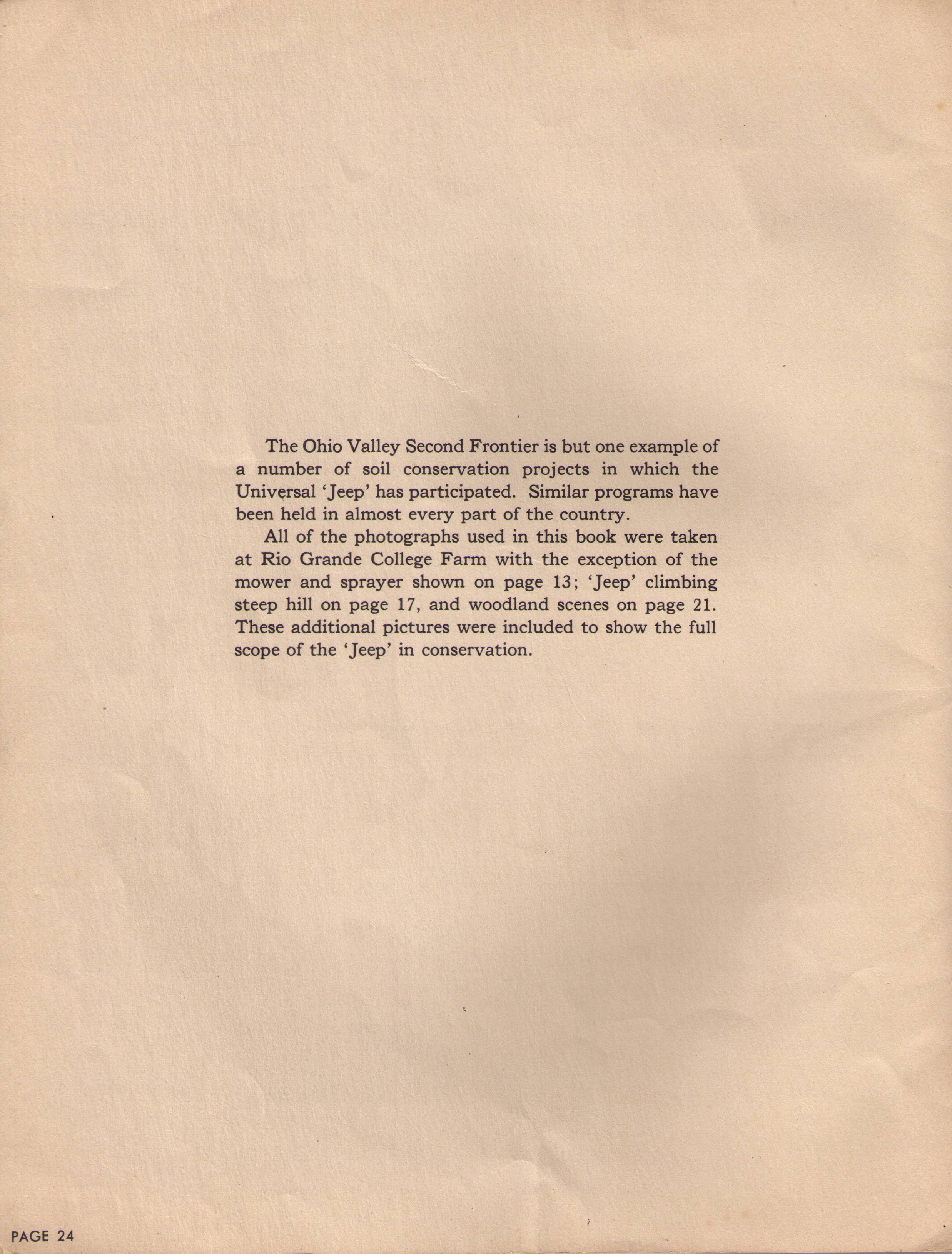

A Report on the Universal Jeep in Conservation
Here is my latest brochure. It is not dated but I do believe that it should be around 1947. There is a lot of CJ-2A and I think there is also the Agri-Jeep since some pics has the word “jeep” stamped on the hood. I never saw a real one and I don’t know if it exist. Some pics may have been altered. Yep! Even in that time they were able to “photoshop” their pics. The brochure is in good condition but someone (a kid probably) wrote the name “john” on some pages.

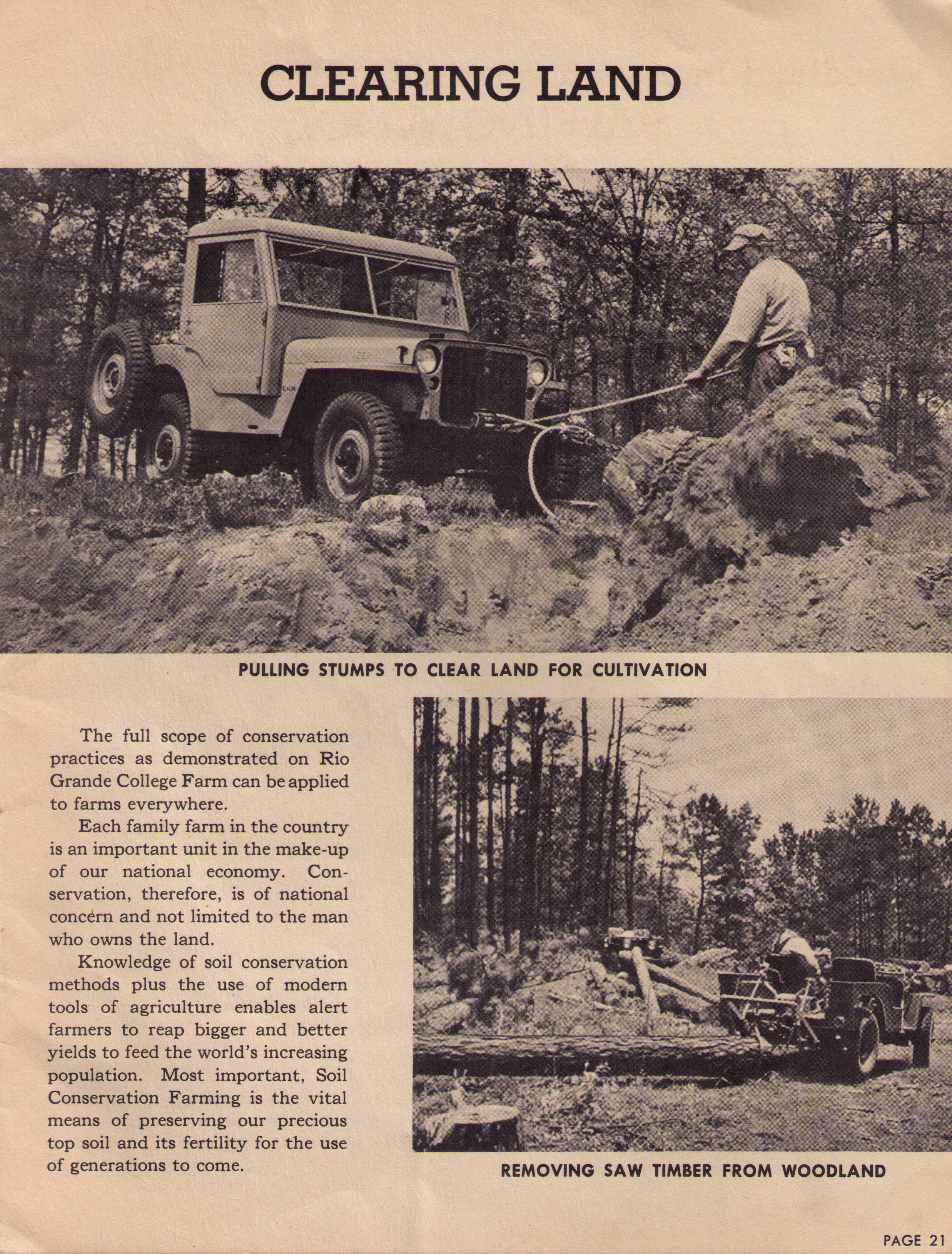

I really like the jeep on page 21 of the brochure. It’s look like a CJ-2A with a strange cab. The word “jeep” is stamped on the hood and the grill has 9 slots. What do you think about it?
Parts Peculiar to Perkins Diesel Jeep
I would like to thank Eric Fuller for sharing with us a pdf copy of the Parts Peculiar to Perkins Diesel Jeep manual for the models CJ-5 and CJ-6. The manual was issued in 1964 from Kaiser Jeep Corporation.
Here it is.
Perkins engine Oil Dipstick
I never paid attention to it but the manual show the dipstick on the right side of the engine but on a Perkins Diesel Jeep, it’s on the left side.

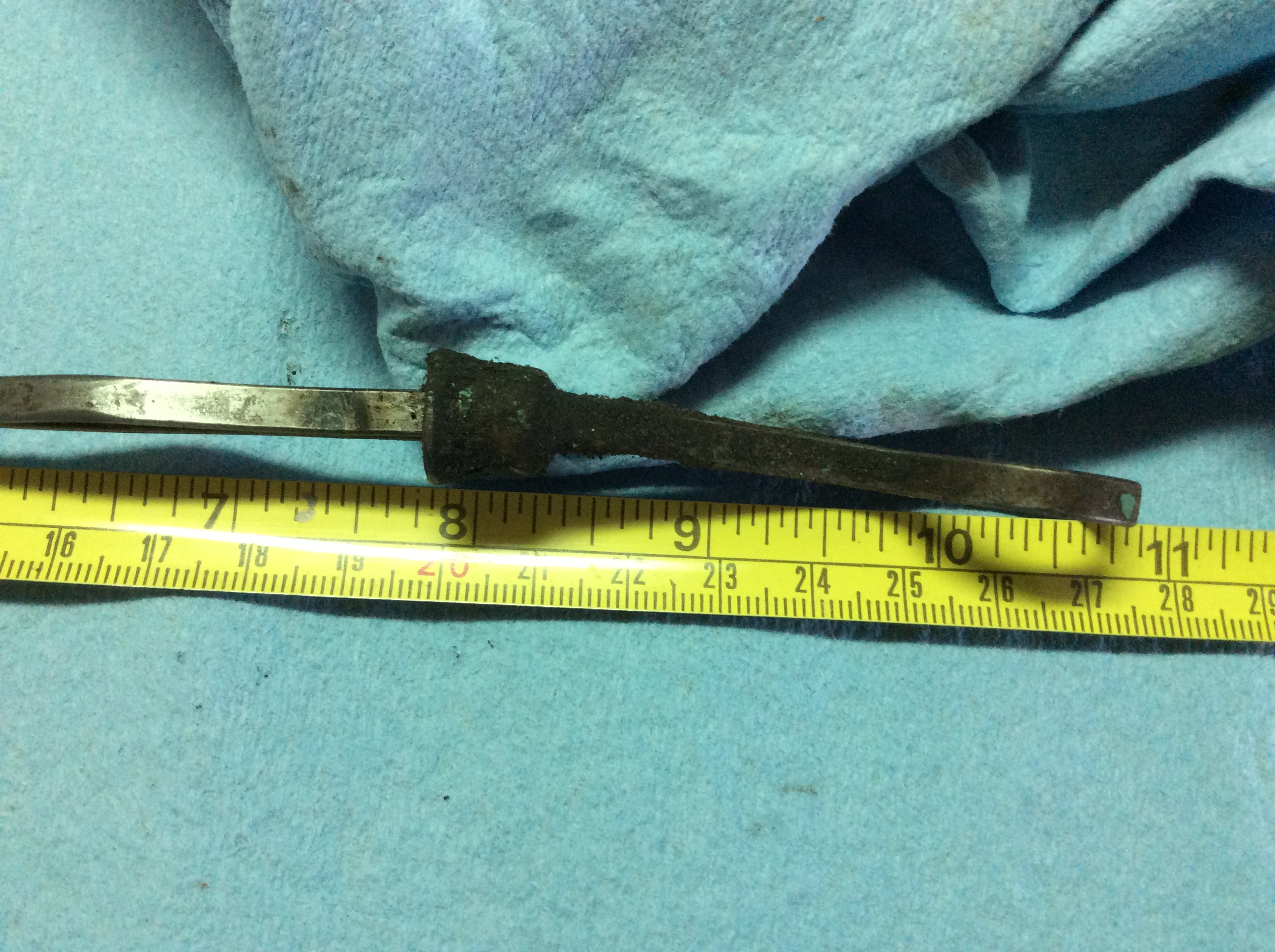

Here is pics showing it.
The dipstick measure around 10″3/4. From the end tips to the tap it measure 8″.
The max oil is at 3/4″ and the min look like at the end of the tips.
Hope this help.
Transmission and Transfert case Oil
Here is a very good paper on which oil should we use in our classic car. I took it from www.thecj2apage.com discussion forum.
At the end of the paper, it summarize a couple of brand:
Amsoil Synthetic manual Transmission and Transaxle Gear Lube 75W-90 GL-4
Citgo Citgear Standard XD 75W-90 GL-4
Pennzoil Gearplus 80W-90 GL-4
Pennzoil Synthetic 75W-90 GL-4 (from the spec sheet, the best overall viscosity curve)
Quaker State Multi-purpose Gear Lubricant 80W-90 GL-4
American Motors Company Model Poster
Here is my latest acquisition to my collection!

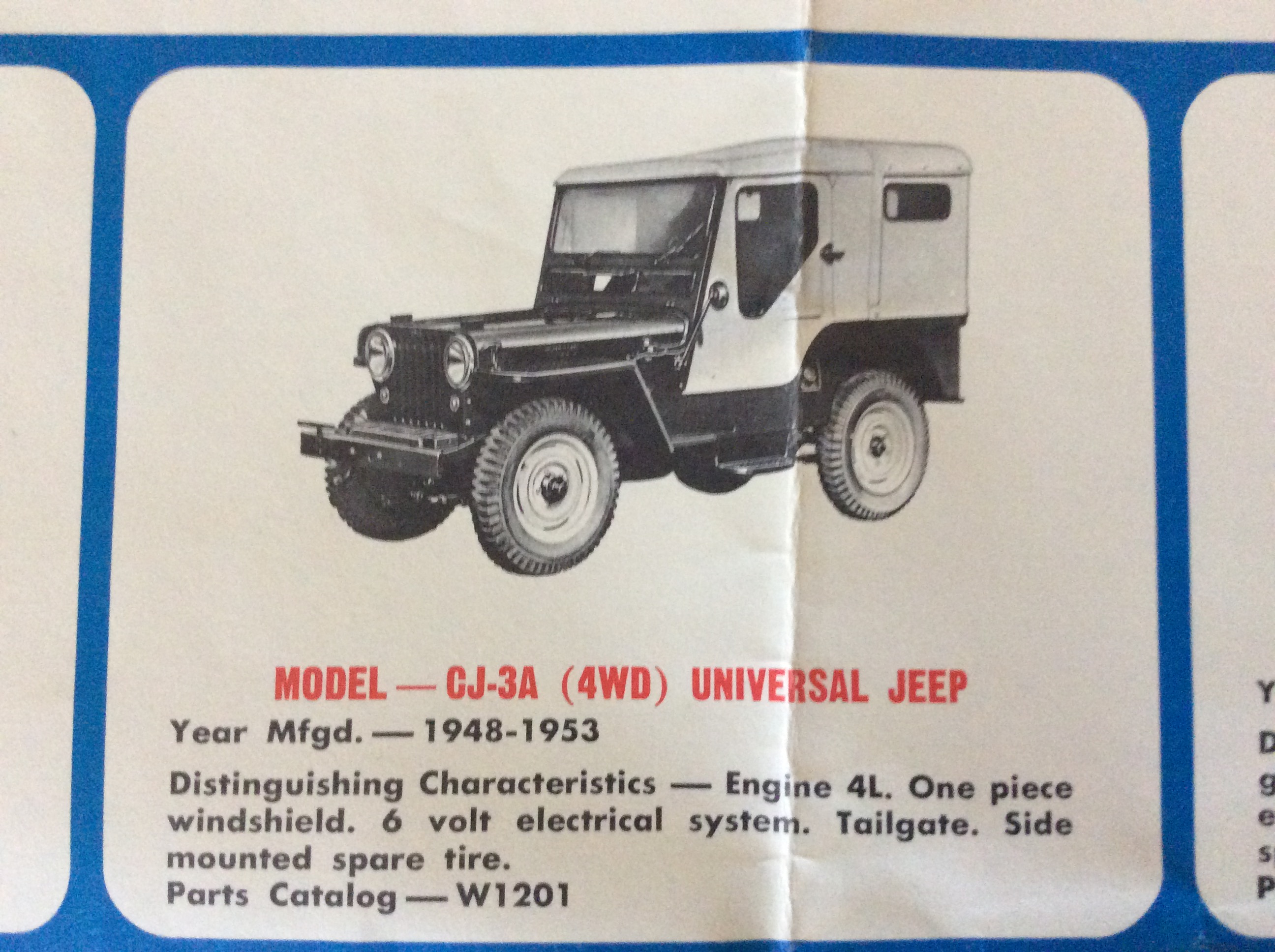

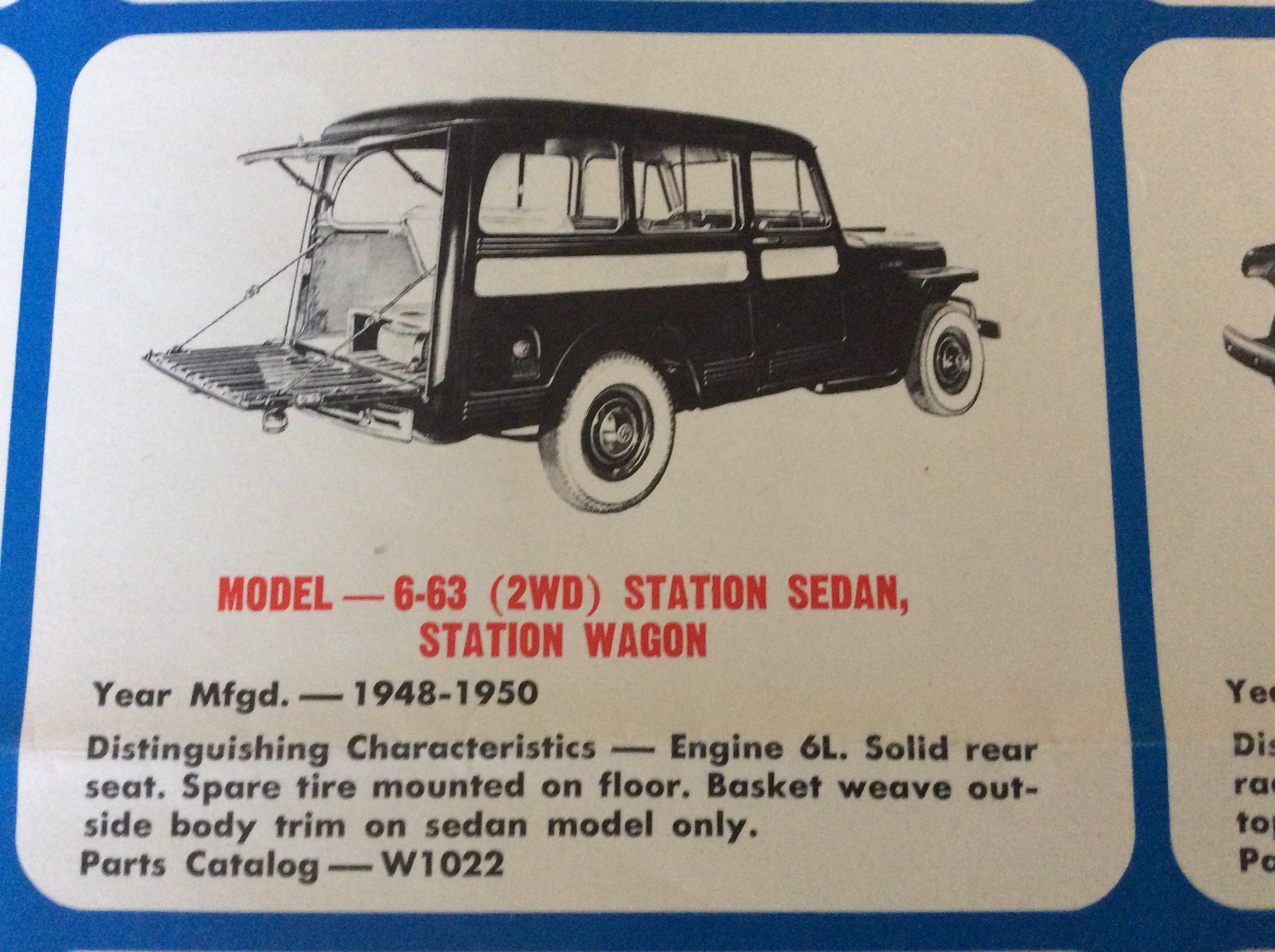

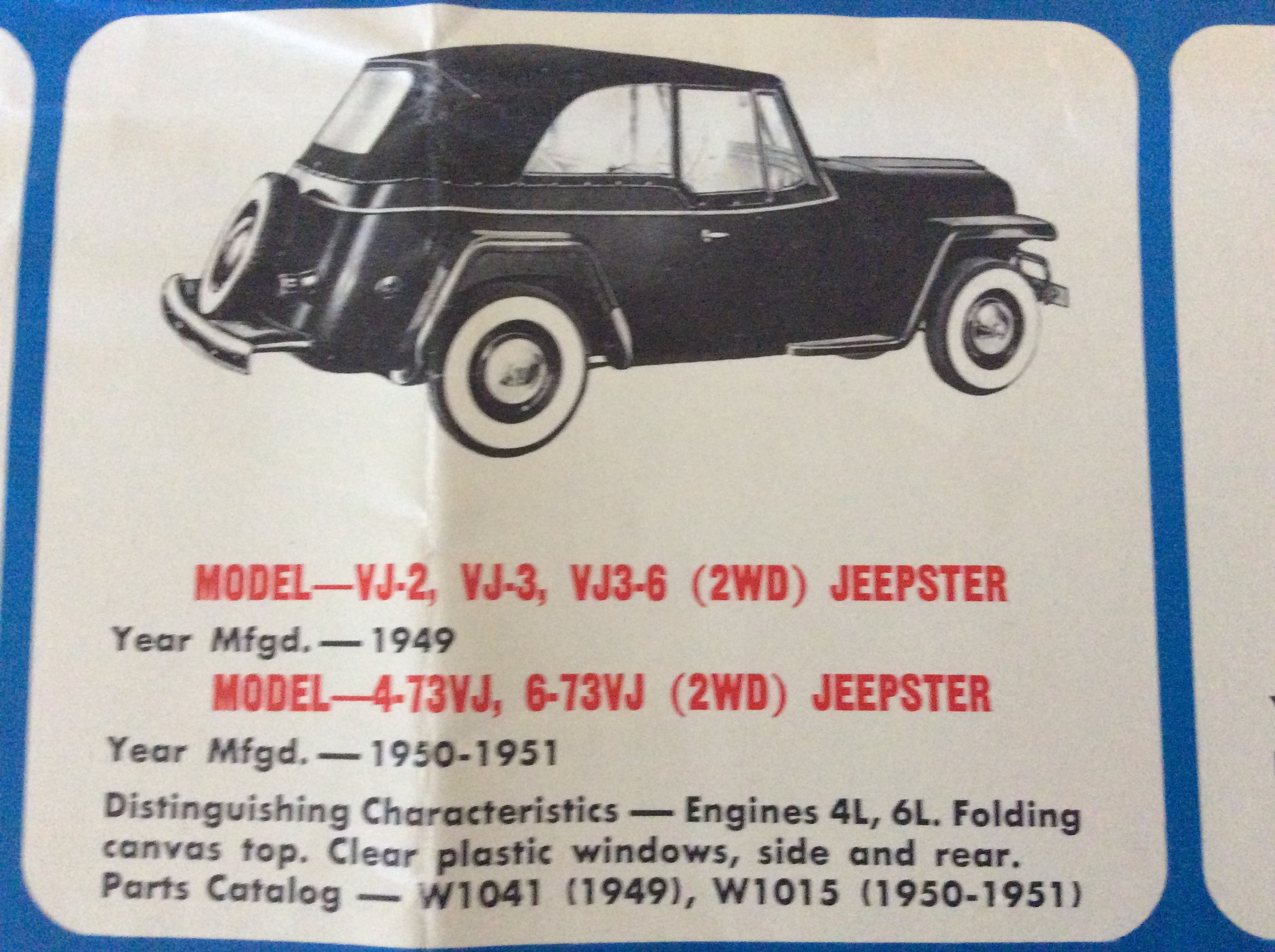

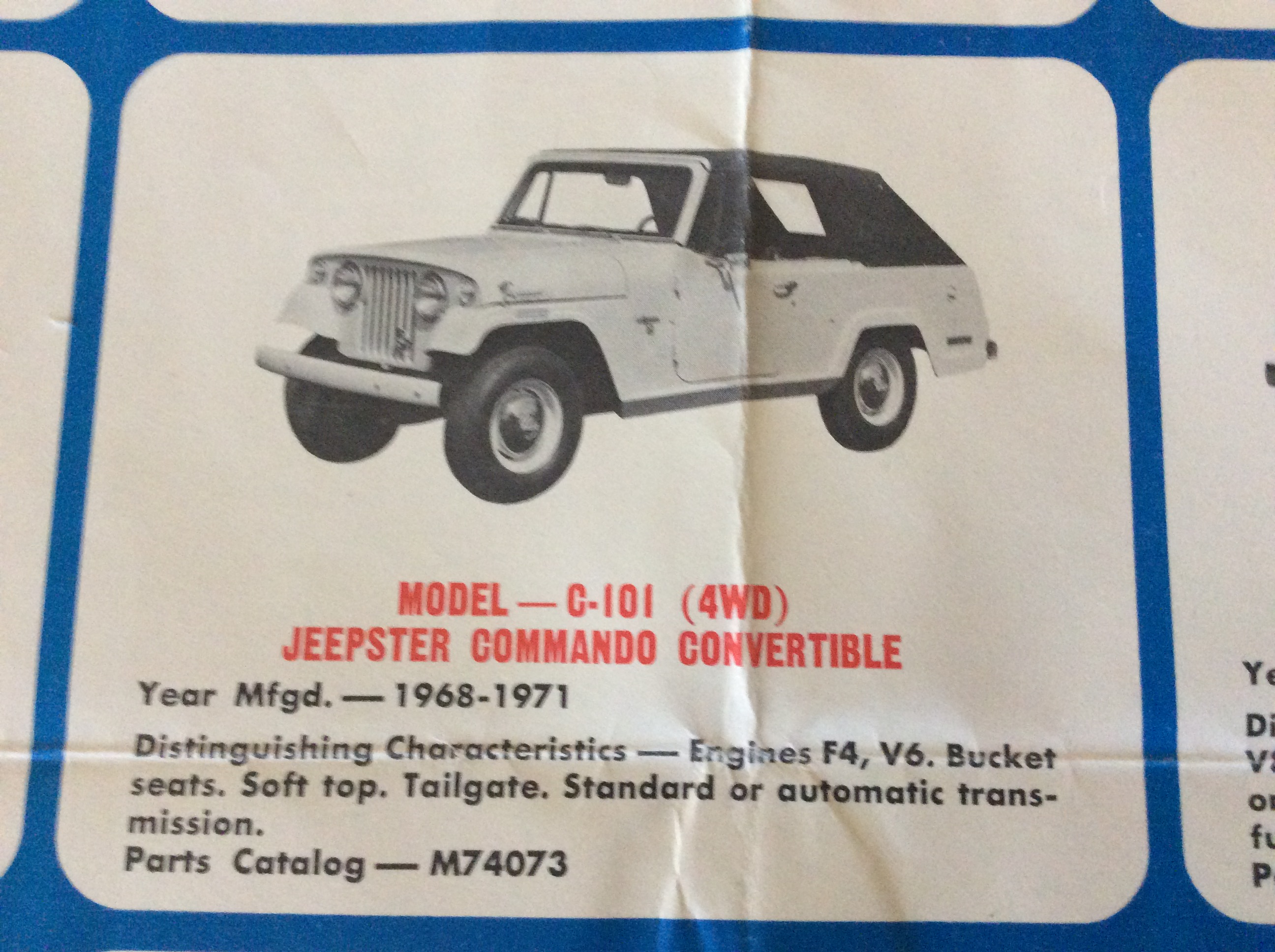

It’s a 36″x48″ poster showing all jeep model to help identification. Which one you would choose?
Here is pics of each model, I don’t have time right now to scan them.
Versatile Jeep Willys
I don’t remember where I found those pdf manual but they are pretty neat! I think it was on www.thecj2apage.com but I’m not sure. If you know where they are originated from let me know so I can give the credits to them.
They are big so it take time to open.
I’m always surprised when I saw how many things that the Jeep can do with the proper tools or attachment!
In the Jeep Trucks manual, there is more details about the
Dump-o-Matic bed and a lot of other great stuff;
Too many attachments to list them all so check all of them here in The Jeep in Agriculture manual:
The Jeep in Agriculture
This one is my favorite! Air Compressor, fire apparatus, Jeep-A-Trench and many more:
The Jeep in Industry
Carson Folding Center Seat
I found in “The Jeep in Industry” manual a folding center seat made by Carson.
I known the
Dumas Center seat but I was not aware about the Carson’s.
If you own one or have a picture of an original, please share it with us!
Southeast Willys Jeep Get Together
Here is an invitation from Will Springer:
I’m inviting you to the: Southeast Willys Jeep Get Together
First Saturday in October – 10/1/16 Asheville, NC.
I hope to meet you in Asheville.
Call if you have any questions. Thanks … P.S. I’ll have my rusty ’62 at the Get Together.
Optimistically, Will(ys) Springer o|||o
EVENT LOCATION: Grace Event Center 495 Cardinal Road Mills River, NC 28759 (near Asheville)
MAILING ADDRESS: Southeast Willys Jeep Get Together 65 Wilkie Way Fletcher, NC 28732 Phone:828-687-0334
1957 4 Big Reasons
Here is a brochures telling us the 4 Big Reasons why it will pay us to know what Willys can do for us!
1946 The Universal Jeep
Here is an eight page brochure about the new Universal Jeep. It’s the new CJ-2A from Willys-Overland. A lot of great pictures and applications on it.
1956 New CJ-6 Model
Here is a four pages brochures featuring the 1956 New CJ-6 Model.
I note it has no side step shown. I don’t understand why it was not a bestseller like it would. I own a DJ-6 which is almost identical except that it is not 4wd. It is one of my preferred model.
Willys M38 Manuals
************UPDATED July 14, 2016***************
I added the missing chapter two from the maintenance manual pdf file.
Here is some pdf manual files that I found on the web.
They are quite big (Over 45 meg) so it takes time to open.
The first one is the
Maintenance Manual TM 9-8012.
Here is the missing Chapter 2
Here is the Parts
Manual ORD 9 SNL G-740.
Then here is the
Engine-Clutch Manual TM 9-1804A.
And finally the
Power Train and Body Manual TM 9-1804B.
1955 Jeep WILLYS Fire truck for sale UPDATED
original post about it here.
It’s now back for sale
here on Kijiji.
The truck is not advertised anymore as a Fire truck but the price goes down to 18500$. He also added new pictures of it.
A Man Dishwasher
Yesterday I went to the Canadian Tire Store and found a discounted parts washer…I couldn’t resist and I bought it! It’s the Canadian tire homemade brand Mastercraft but It look like well build. I paid it 175$. Let me use it and I will tell you how it goes.
Tire application Chart

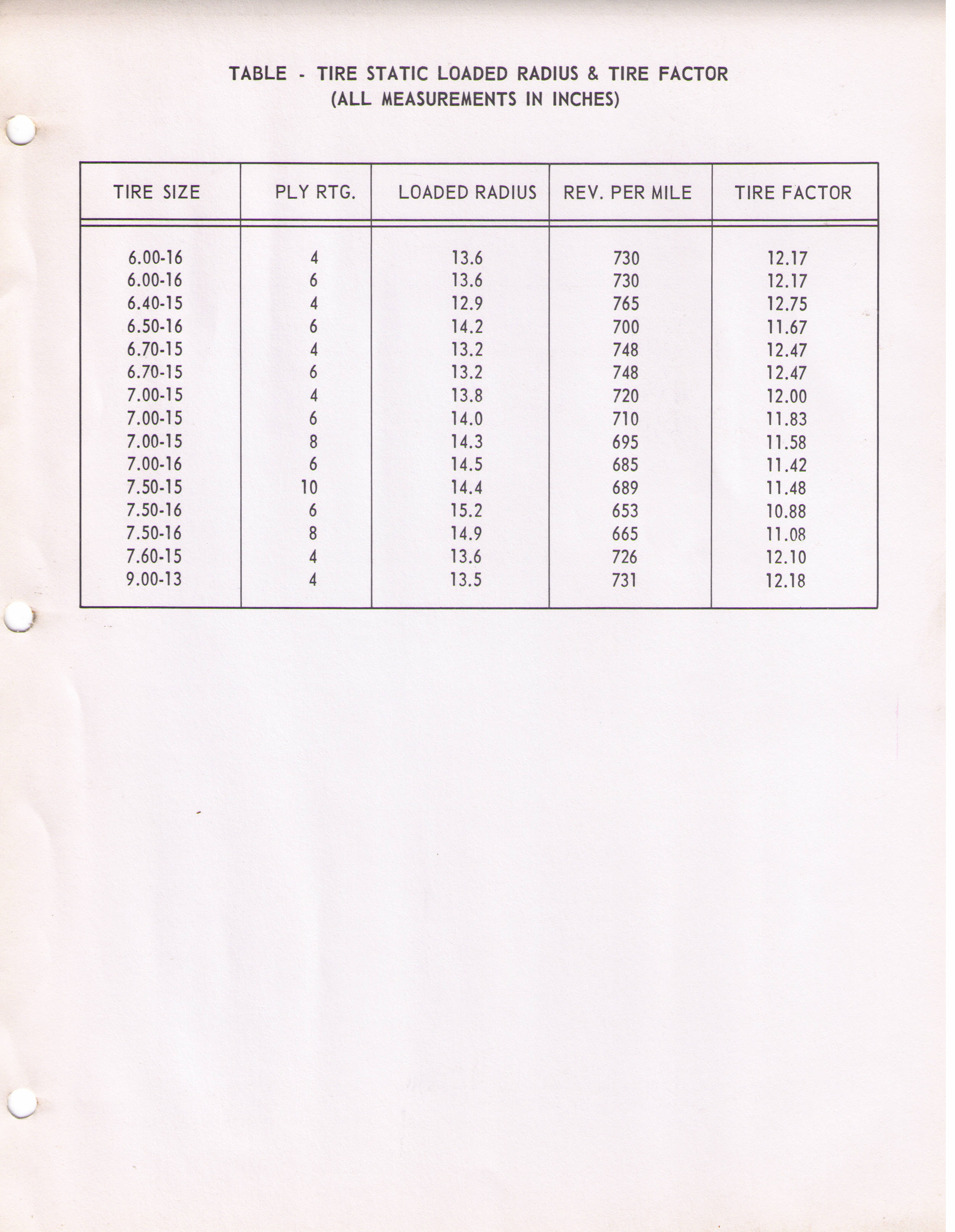

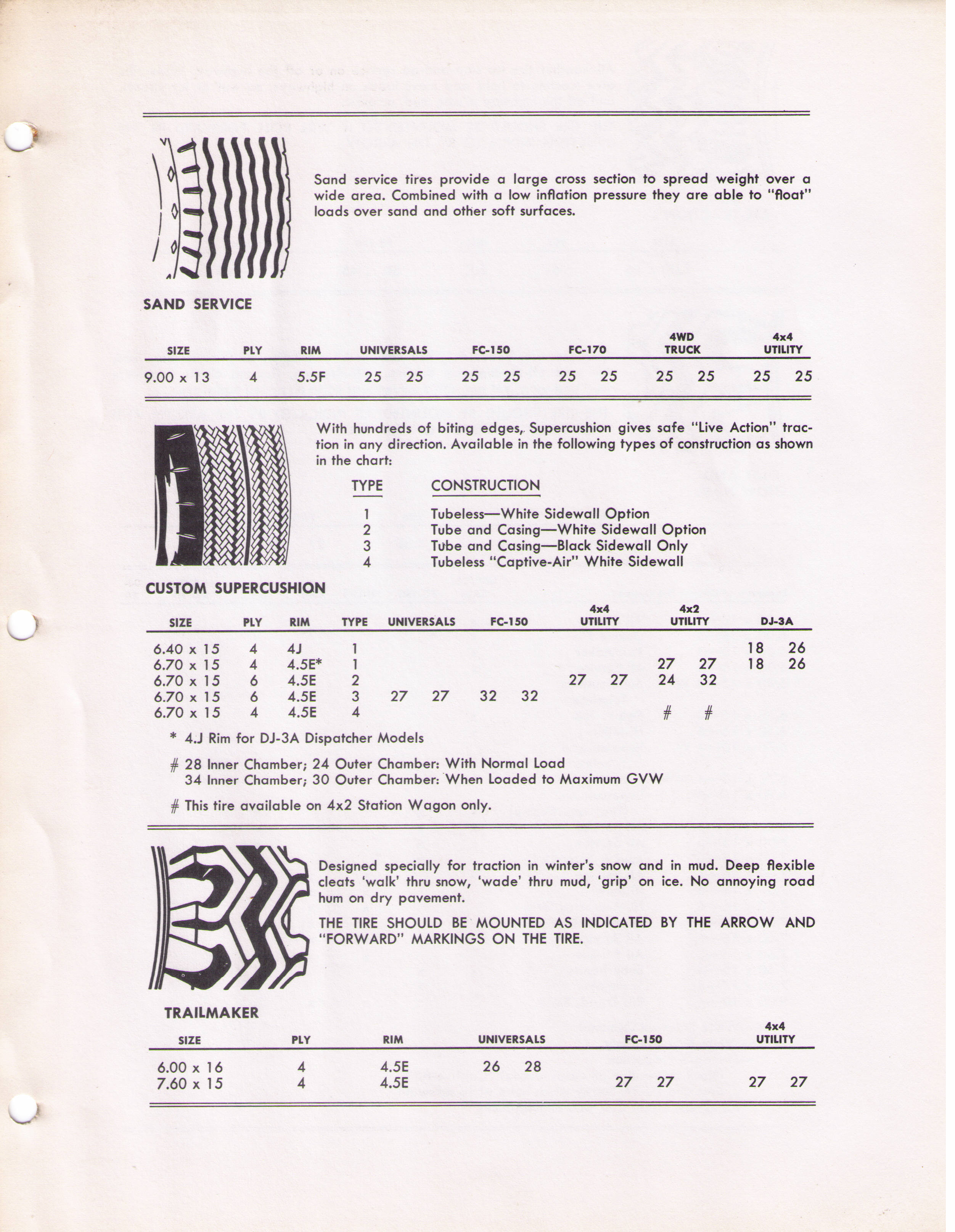

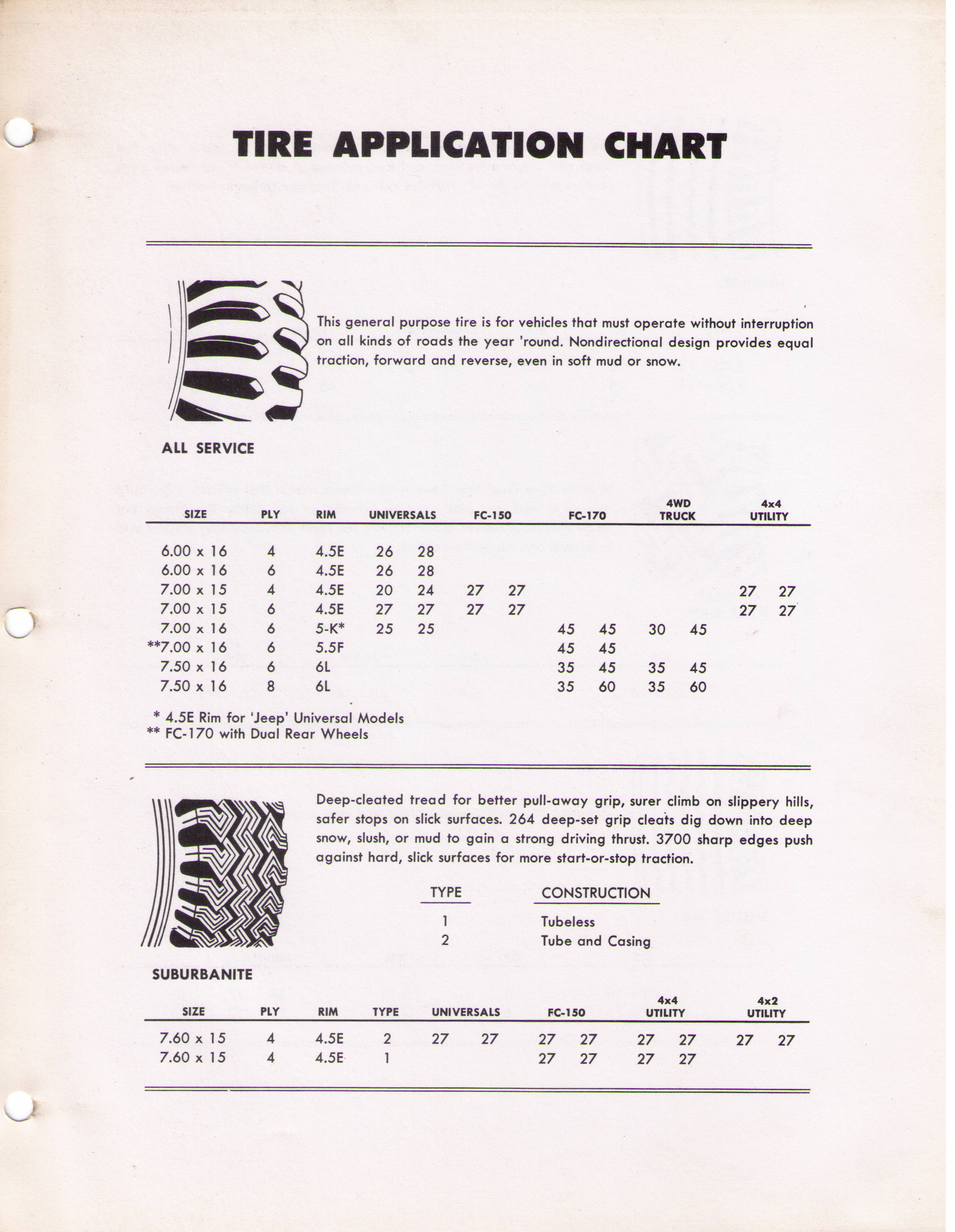

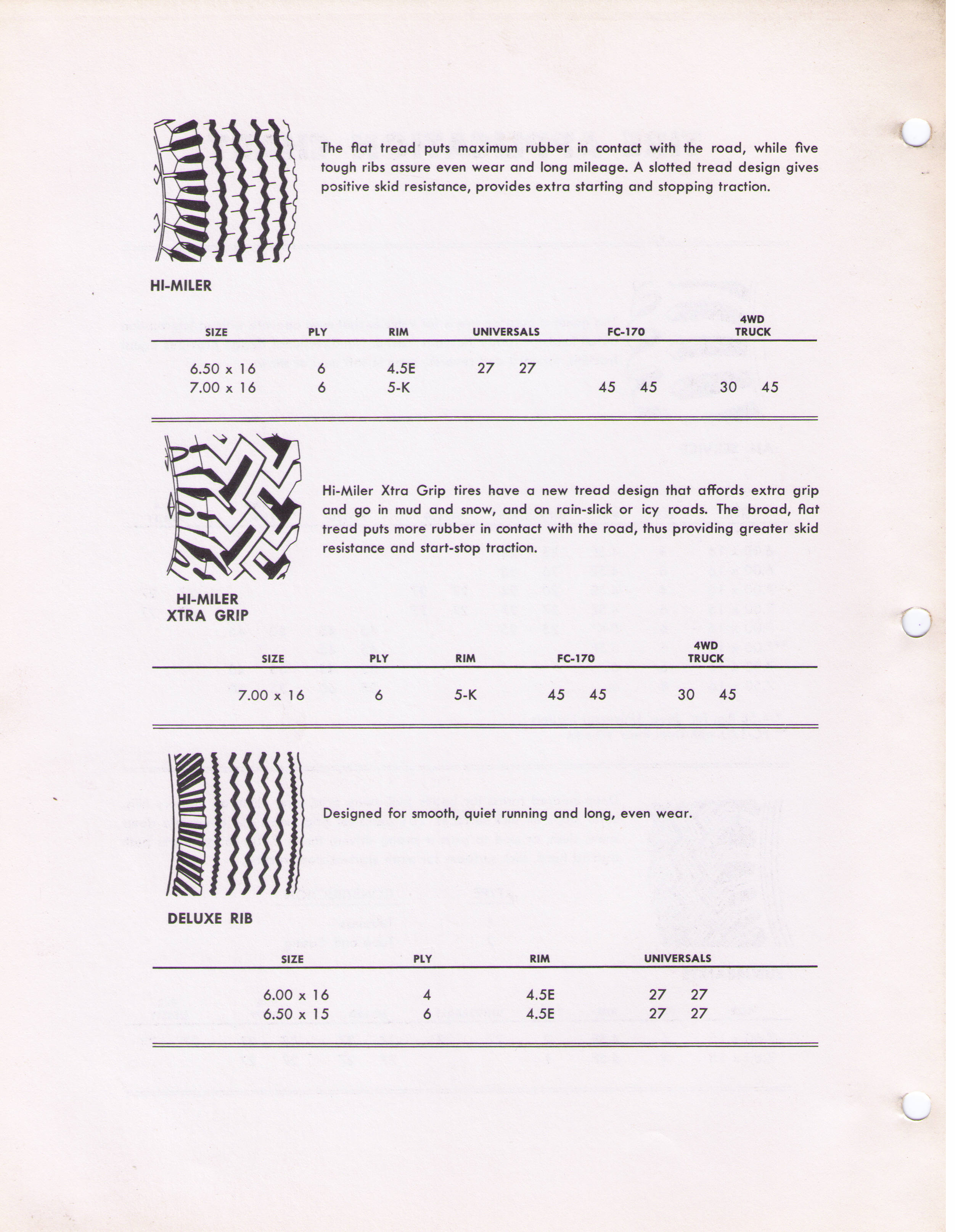

Here is five sheet about Tire application Chart.

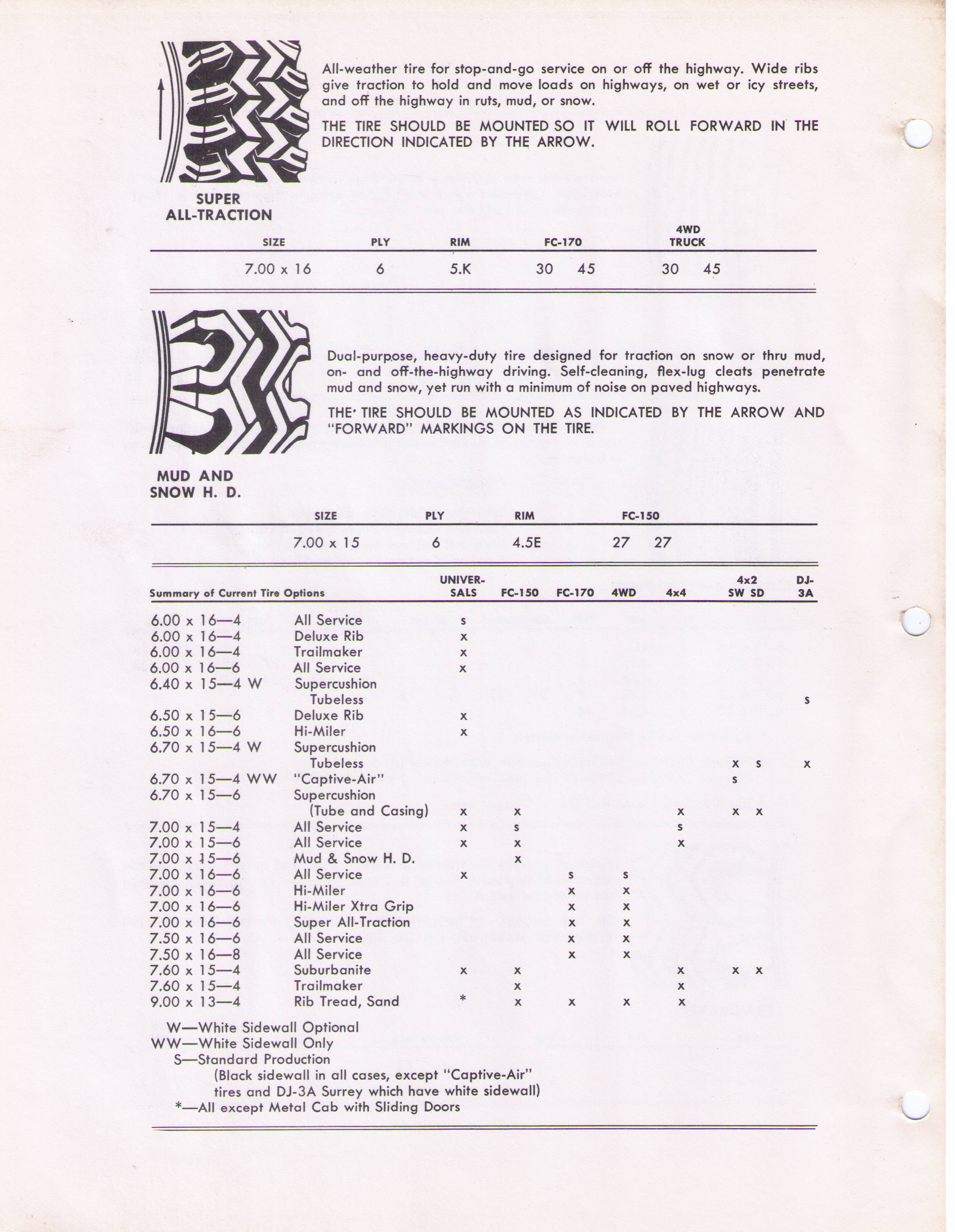

I’m using the “all service” thread pattern tire on my Willys 1950. I really like the “Mud and snow” thread pattern on page 4.
Jeep Airline ground support
I would like to see an actual airport still using them!
Here is a sheet about Jeep Airline ground support.
The Jeep Fleetvan coming soon!
For all mail’s jeep lover, here is one sheet advertising the new arrival of the Jeep fleetvan FJ3 1960.
1959 Covington Cutter attachment
Here is four sheet about 1959 Covington Cutter attachment.
1968 Covington Cuttler attachment
Here is two sheet about the 1968 Covington Cuttler attachment.
Willys CJ-2A Service Bulletin
Here is the Willys CJ-2A Service Bulletin.
This was compiled by Sean over the
www.thecj2apage.com and you will find the original copies here on the CJ2A Forum page.
The first pdf file is the index showing which service bulletin is available in the second pdf file.
Sean made a good database parts list also.
Find it here.
1951 ad’s for Jeep, Truck and Wagon
Here is a nice brochure about 1951 ad’s for Jeep, Truck and Wagon.
It has 4 pages. I really like the slogan “Don’t handle with care!”
Also, note the use of a tire track…
